D.E. Filter Press
For fine filtration of highly contaminated completion brines and seawater.

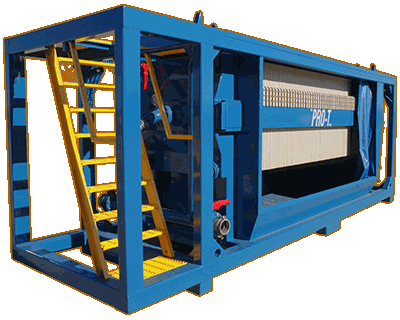

Model Shown Above:
-
Dimensions- 23' 6" L x 6'Wx 8'H
- Weight - 22,000 lbs
- Flow Capacity - 16 bbl/min
- Manifolds - 4" Inlet / Outlet
- Filter Area - 1,700 ft2
- Max Working Pressure - 80 PSI
- Plates - 65
- Chambers - 64
- Plate Size - 1,200mm H.V.
|
Features:
- Caulked and gasketed plates
- All units are stackable
- Stainless steel manifolds
- Blow down feature for dryer cake
- Backup hydraulic pump
- Enclosed hydraulic system
- 2" pump piped to catch pan
- Curtains to contain waste
|
| D.E.
Filter Press Model Comparison |
| Models --> |
900 |
1000 |
1200 |
1300 |
1700 |
| Dimensions(LxWxH) |
17'x6'x8' |
17'x6'x8' |
19'x6'x8' |
19'6"x6'x8' |
23'6"x'6x8' |
| Weight |
17,000 |
17,000 |
18,800 |
18,800 |
22,000 |
| Flow Capacity |
10 |
12 |
12 |
14 |
16 |
| Manifold |
4" |
4" |
4" |
4" |
4" |
| Effective Filter Area |
900 ft2 |
1,000 ft2 |
1,200 ft2 |
1,300 ft2 |
1,700 ft2 |
| Max Working Pressure |
80PSI |
80PSI |
80PSI |
80PSI |
80PSI |
| Plates |
33 |
35 |
41 |
47 |
65 |
| Chambers |
32 |
34 |
40 |
46 |
64 |
| Plate Size |
1,200H.V. |
1,200H.V. |
1,200H.V. |
1,200H.V. |
1,200H.V. |
