The Commander - High Capacity Filtration Package

High flow, high capacity filtration unit designed for subsea deep water completions.

oilfield filtration de filter press

The stackable filtration units give operators better use of rig space with safety integrated into each unit with handrails and other safety features. Pro-T delivers customizable filtration options that offer flexibility, safety and performance.

DE Filter Press Specifications:

  • Dimensions - 24’6” L x 8’ W x 8’ H
  • Weight - 26,000 lbs
  • Flow Capacity - 30 bbls/min
  • Manifolds - 6” Inlet/Outlet
  • Filter Area - 1,700 ft2
  • Max Working Pressure - 100 PSI
  • Plates - 70
  • Chambers - 69
  • Plate Size- 1,200 MM

Slurry Skid Specifications:

  • Dimensions - 19’ L x 8’ W x 8’ H
  • Weight - 9,500 lbs
  • Tank Capacity - 32 barrels
  • Compartments - 2
  • Pipework - 6” Inlet/Outlet

Features:

  • Stackable
  • Air line agitators
  • Air actuated valves with control panel
  • Tanks and pipework constructed of stainless steel
  • Stainless steal jumper lines used in stacked position



  • Stainless dual pod unit designed on skid for compactness and safety
  • Two 3" air driven pumps for admix
  • Graduated barrel markers
  • Integrated 6” diesel pump
  • Integrated hose basket
  • Integrated Bulk D.E. Handling System



Complete Package including Diesel Pump, Hose Basket and Hopper

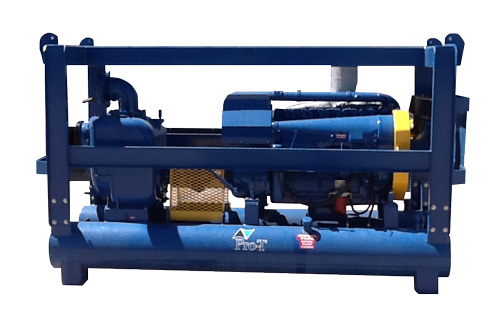

Diesel Pump

Diesel Pump Specifications:

  • Dimensions - 11'6" L x 4'6" W x 6'2" H
  • Weight - 6,200 lbs
  • Rate Capacity - 20 to 30 barrels per minute
  • Horsepower - 120
  • Fuel Capacity - 152 gals
  • Max Discharge Pressure - 100 PSI
  • Engine Type - Deutz 6-cylinder air-cooled
  • Pump Type - 6 x 6 Gorman Rupp

Diesel Pump Features:

  • Environmental pan
  • Emergency shutdown device
  • Spark arrestors
  • Heat-resistant blankets
  • Skid mounted
  • Large fuel capacity - 152 gals
  • Air Start



Hose Basket

Hose Basket Specifications:

  • Length 24'
  • Width 6'
  • Height 3'
  • Weight 5,800 lbs SWL
  • Empty Weight 4,200 lbs



  • Carbon Steel, Galvanized
  • 15, 6" Hoses
  • 2, 2" Hoses
  • 4, 1" Hoses
  • 4, 90's

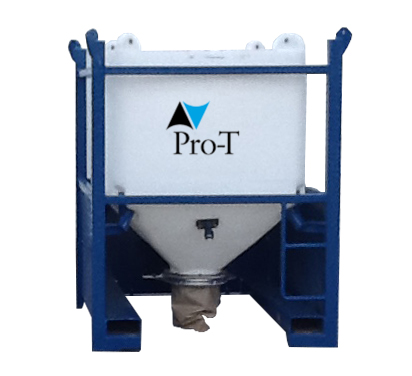

D.E. High Capacity Loader

D.E. Loader Specifications:

  • Width 5'4"
  • Height 6'
  • Loaded Weight 1,660 lbs
  • Empty Weight 660 lbs

D.E. Cage Specifications:

  • Width 5'
  • Height 5'
  • Weight 300 lbs

We continually deliver peace-of-mind to our customers through service, professionalism, safety, reliability and performance. Rely on Pro-T for your next completions project.
